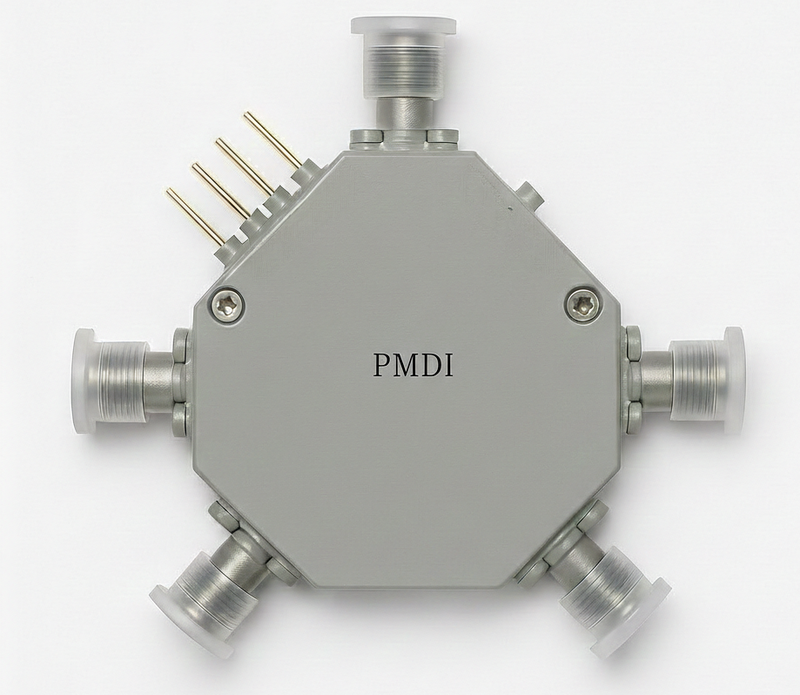

PIN Dide switch

High-Performance RF PIN Diode Switches

Premier Microwave Devices Inc. (PMDI) offers a comprehensive line of high-performance PIN diode switches, engineered for precision signal routing across RF, microwave, and millimeter-wave spectrums. Designed to provide ultra-fast switching speeds and high isolation, our active components are the backbone of modern automated test systems and complex signal distribution networks.

By enabling seamless instrument-to-instrument routing, PMDI switches allow for simultaneous multi-test configurations within a single setup—significantly streamlining operations and maximizing laboratory productivity.

Key Features

• Ultra-Fast Switching: Optimized PIN diode technology for rapid signal path transition.

• Broadband Performance: Reliable operation across RF, microwave, and mmWave frequencies.

• High Isolation & Low Loss: Engineered to maintain signal integrity with minimal interference.

• Streamlined Test Operations: Facilitates complex multi-test setups, reducing manual intervention.

• Global Compliance: Most models are RoHS and REACH compliant, meeting the highest environmental and regulatory standards.

Applications

• Automated Test Equipment (ATE): Precision routing for high-throughput testing.

• Electronic Warfare (EW): Fast signal blanking and path selection.

• Communication Systems: Reliable signal switching in high-density networks.

• Radar & Sensing: High-speed pulse modulation and routing.
